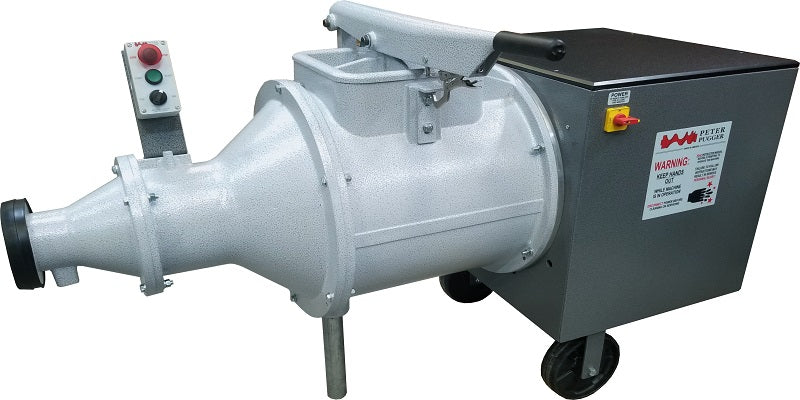

PM-100 Pugger-Mixer - PeterPugger

  • Sale
  • Regular price $8,024.00


“The Pugger-Mixer is a mixer that unloads itself and a pugmill that feeds itself.”

It recycles scrap as well as mixes from dry powder. Complete processing of your clay in one machine saves you space, money, and best of all, your time. Since its inception in 1975, the Pugger-Mixer line has continued to be the “standard” as it relates to the Ceramic Industry.  Recent improvements including a “chain-less”, maintenance free gear drive system, updated hopper door design, ergonomically placed push button controls and state-of-the-art VFD Technology reconfirms our commitment to providing premium quality and performance equipment.



Specifications

  • Maximum Batch Capacity*: 250 pounds
  • Pugging Rate: 2,000 lbs. per hour
  • Mixing Rate: 600 lbs. per hour
  • Dimensions: 60″L x 24″W x 31″H
  • Crated Weight: 750 lbs. (Ships LTL Trucking)
  • Hopper Door Size: 11″ x 11″
  • Pug Size:  4″ round
  • Electrical: 4 HP, 1-Ph 24 amps, 3-Ph 21.5 amps @ 240V
  • Vacuum Pump: N/A

*Max Batch Capacity may vary depending on material density and moisture content
