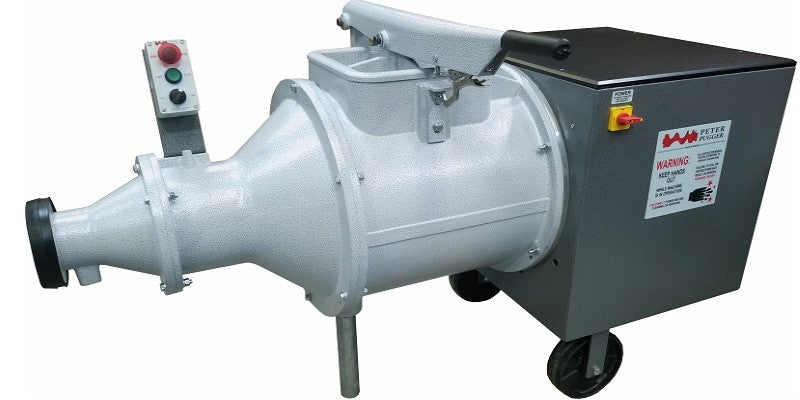

PM-50 Pugger-Mixer (Non Deairing) - PeterPugger

  • Sale
  • Regular price $6,365.00


“The Pugger-Mixer is a mixer that unloads itself and a pugmill that feeds itself.”

It recycles scrap as well as mixes from dry powder. Complete processing of your clay in one machine saves you space, money, and best of all, your time. Since its inception in 1975, the Pugger-Mixer line has continued to be the “standard” as it relates to the Ceramic Industry. Recent improvements including a “chain-less”, maintenance free gear drive system, updated hopper door design, ergonomically placed push button controls and state-of-the-art VFD Technology reconfirms our commitment to premium quality and performance.

Specifications

  • Maximum Batch Capacity*: 140 pounds
  • Pugging Rate: 1,500 lbs. per hour
  • Mixing Rate: 500 lbs. per hour
  • Dimensions: 30″L x 20″W x 46″H
  • Crated Weight: 400 lbs. (Ships LTL Trucking)
  • Hopper Door Size: 9″ x 9″
  • Pug Size: 3.5″ round
  • Electrical: 2 HP, 1ph, 16 amps at 240 volts
  • Vacuum Pump: N/A

*Max Batch Capacity may vary depending on material density and moisture content
