VPM-30 Vacuum Power Wedger - PeterPugger

  • Sale
  • Regular price $6,847.00

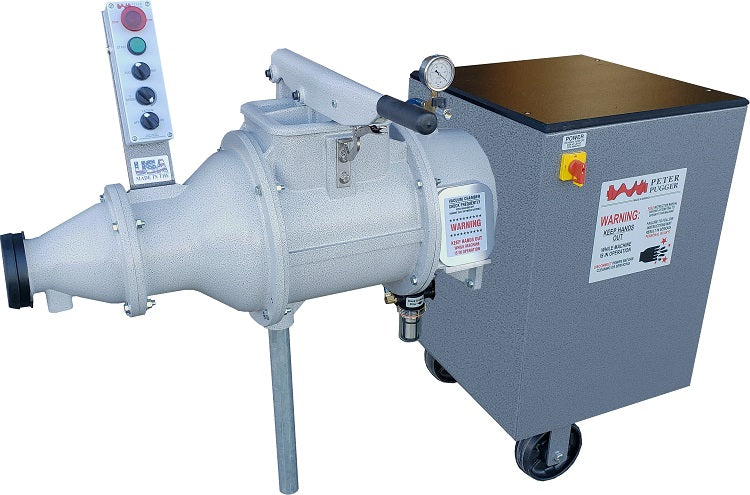

From its inception in 1984, the VPM-30 caught the attention of the industry as the first and only Vacuum Deairing Mixing Pugmill of its kind. Since that time, Peter Pugger has incorporated several advancements into our extended line of Vacuum Dearing Mixing Pugmills. We are proud to announce the newly renovated VPM-30 with its “chainless”, maintenance free gear drive system, state-of-the-art VFD technology, updated vacuum chamber and robust auger design that embellishes the quality and performance that customers around the world have come to expect.


Specifications

  • Maximum Batch Capacity*: 85 pounds
  • Pugging Rate: 800 lbs. per hour
  • Mixing Rate: 240 lbs. per hour
  • Dimensions: 46″L x 24″W x 33″H
  • Crated Weight: Aluminum Version – 410 lbs. (Ships LTL Trucking)
  • Hopper Door Size: 8″ x 8″
  • Pug Size: 3″ round
  • Electrical: 1.5 HP 1-phase, 16 amps at 120 volts, 8.5 amps at 240V
  • Vacuum Pump: 1/2 HP (Included; operates off main electrical)

*Max Batch Capacity may vary depending on material density and moisture content
