(14 lb. Max. Batch Size)

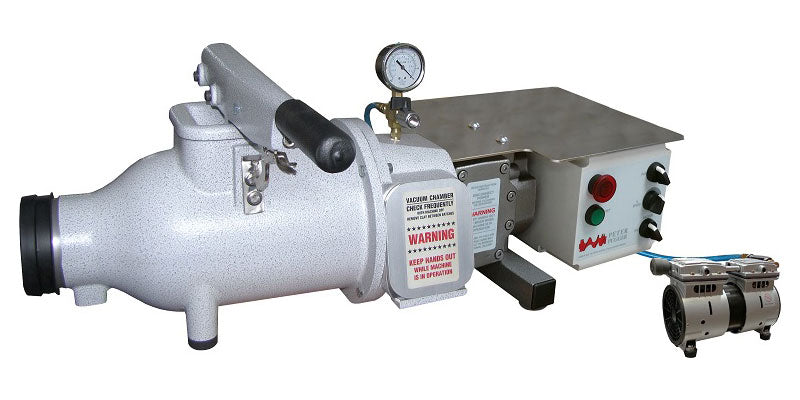

“The Vacuum Deairing Pugger-Mixer”
Comes equipped with 110V electrical for standard service.
- Maximum Batch Capacity*: 14 pounds
- Pugging Rate: 350 lbs. per hour
- Mixing Rate: 100 lbs. per hour
- Dimensions: 33.5″L x 12″W x 13.75″H
- Crated Weight: Stainless Steel Version – 149 lbs. (Ships Fed Ex Ground)
- Hopper Door Size: 4.5″ x 4/5″
- Pug Size: 3″ round
- Electrical: 1/2 HP 1-phase, 6 amps at 120 volts, 4 amps at 240V
- Vacuum Pump: 1/3 HP, (Included; operates off main electrical)

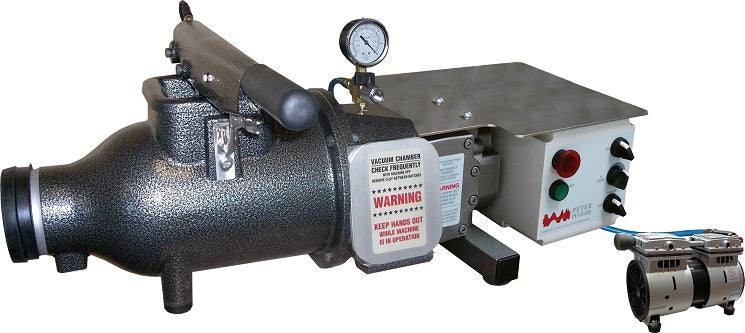

SS Model is imperative for potters using porcelain and white stoneware clay bodies with corrosive soda spars.
*Max Batch Capacity may vary depending on material density and moisture content
